LED WARNING LIGHT

Warning Light

K-LED REBELUTION

Description

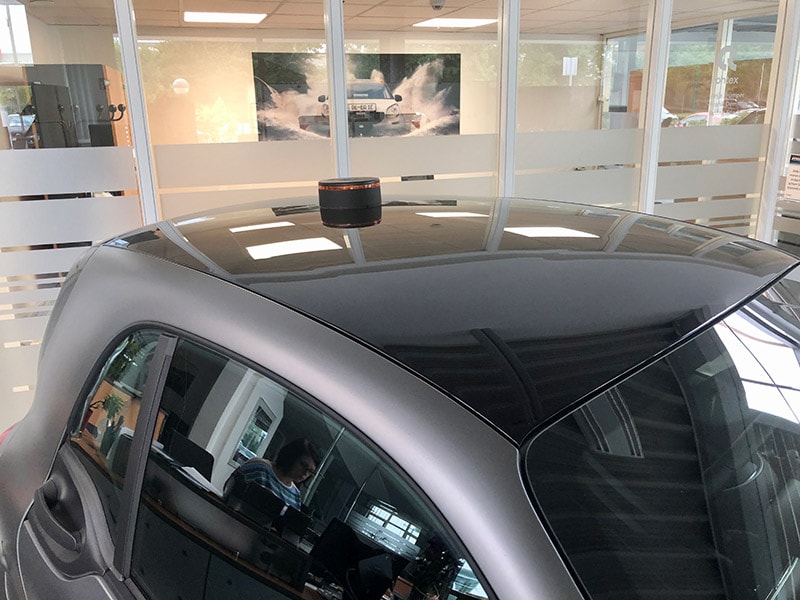

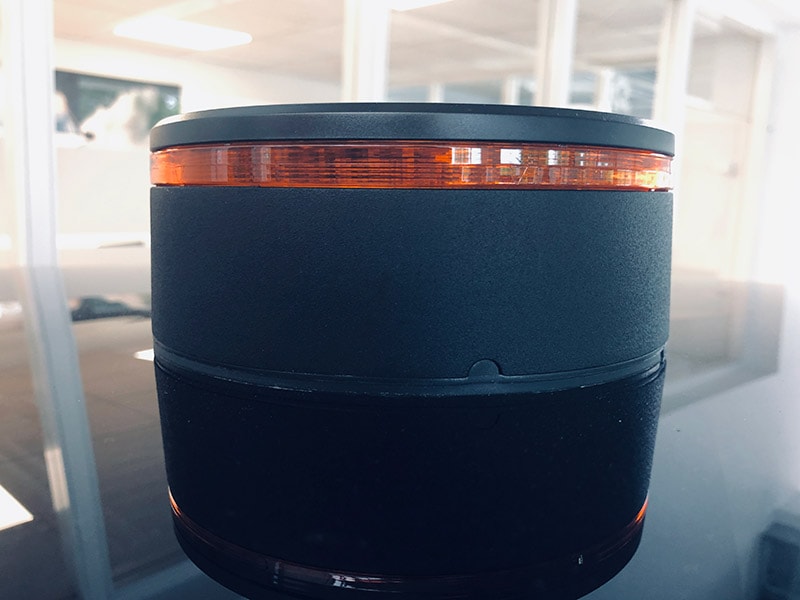

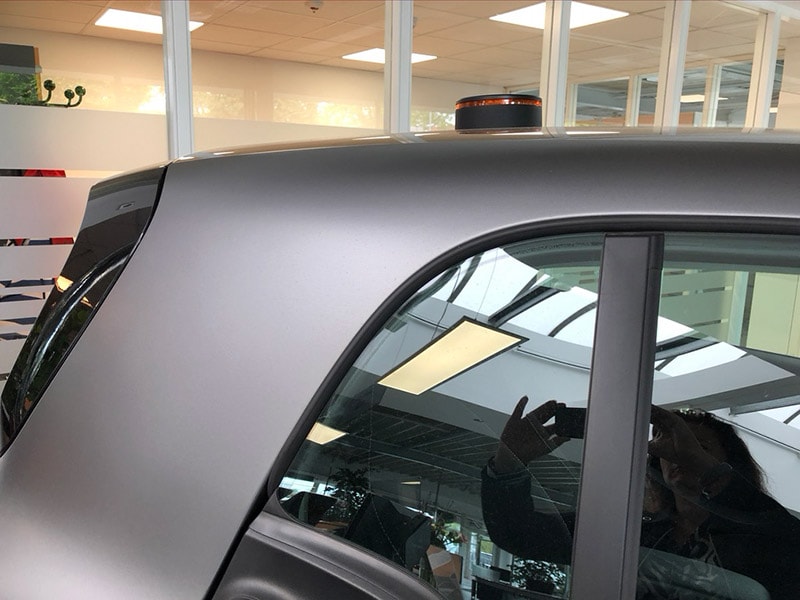

The K-LED Rebelution is currently the most innovative warning light. Its LED technology is state-of-the-art. It enables maximum performance with a minimalist design. This beacon does not need a classic light hood. Due to the very small light emission area, the beacon emits a clearly visible warning signal and complies with the European directive ECE-R65 for use on public roads.

Technische Daten
Technical datan
  rotating   flashing
Rated voltage (UN) Multivolt
Operating voltage (UB) 12 V/ 24 V
Total power input 1,08 A (12 V)
0,54 A (24 V)
  3,16 A (12 V)
1,58 A (24 V)
Power consumption max. 13 W   max. 38 W
Light ring Polycarbonate
Case Aluminium
Use position vertical
Connection Cable length: 150 mm, Open cable ends
Light function rotating or voltage
Light source LED
Weight 690 g incl. rubber pad
Temperature range - 40°C to + 60°C
Polarity protection yes
GGVSE/ADR yes
Protection class IP 6K7, IP 6K9K
EMV protection CISPR 25
class 3
ECE-R10:
058840
CISPR 25
class 5
Light technical homologation ECE-R65 TA1 (E1)
