LEHNER POLARO M
LEHNER POLARO M
Capacity: 220 L
Spreading width: 0,8 - 6 m
Overall dimensions (LxWxH): ca. 1.562 x 1.112 x 1.245 mm
Weight: 140 kg
Salt capacity: approx. 290 kg
Spreading area: approx. 14.500 m²
Weight: 140 kg
Salt capacity: approx. 290 kg
Spreading area: approx. 14.500 m²
Motorised spreading disc: 100 watt
Motorisation worm: 250 watt
Fuse: 30 amp.
Spreading disc speed: 40-600 rpm
Worm speed: 2-54 rpm
Motorisation worm: 250 watt
Fuse: 30 amp.
Spreading disc speed: 40-600 rpm
Worm speed: 2-54 rpm
Description

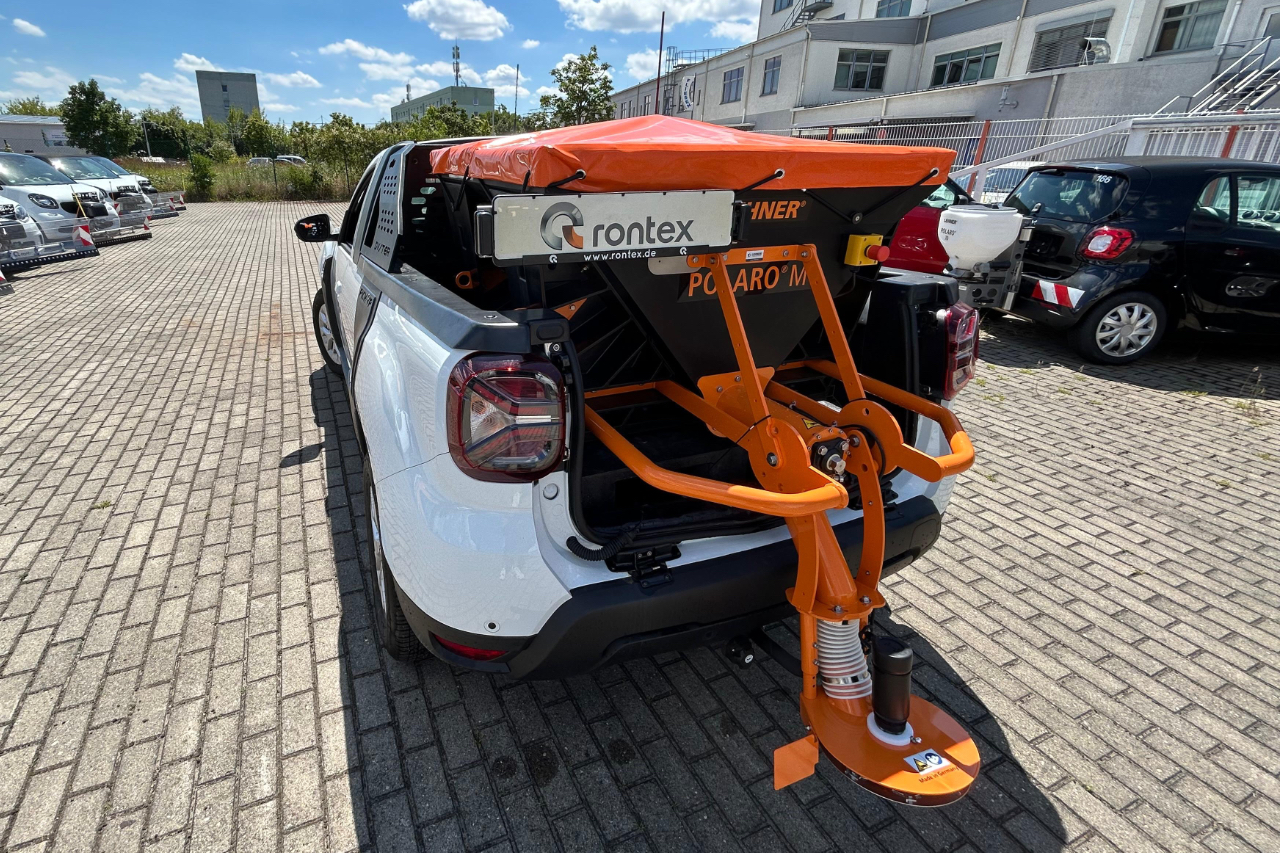

The POLARO® M spreader is not only ideally suited for the accurately dosed spreading on large areas of salt, but also of grit, sand or fertiliser. This does not require a vehicle with hydraulic drive or drive shaft. The spreader is simply mounted on a vehicle with loading platform, 12 V connection and sufficient load capacity and that's it.
Features/Advantages:
- Infinitely variable working width 0.8 - 6.0 m (optionally up to 12 m)
- Control panel for easy and comfortable operation of all functions from the driver's seat (standard)
- Stepless spread rate metering
- Polyurethane hopper with screw conveyor and vibrator with automatic switch-on for constant material flow
- All metal parts made of stainless steel as standard
- Waterproof cabling and gear motors (IP67)
- A voltage transformer is required for 24 V operation
Technical data
|
Operating voltage: |
12 to 15 volt |
|
Operating temperature: |
-10 to +70 °C |
|
Storage temperature: |
-30 to +70 °C |
|
Battery cable: |
3 m + 6 m, Cable cross section 6,0 mm² |
|
Control cable: |
5 m |
|
Protection class: |
IP67 |
